Developing C/C++ is fun!

#C#C++#How-to

C/C++ isn’t my usual go-to for work or play. My initial encounters with it were, let’s say, a bit prickly. There were definition not found errors all over the place, and the code completion was not as smart as modern languages.

Recently I was exploring some awesome projects written in C/C++ (say DuckDB). After some research to configure the development environment, I discovered that with the help of powerful language tools, developing C/C++ can be as enjoyable as working with other modern languages.

In this post, I’m going to share my journey of setting up a C/C++ development environment. I hope it could be helpful for you.

Use LSP-compatible code editor

I currently use Zed as my editor. It’s sleek, it’s speedy, and it’s pretty cool. Internally, it uses clangd as the language server. Thanks to LSP, all code editors today can provide consistent features (e.g. code completion, go-to-definition, and refactoring) powered by Clang toolchain. Thus the following steps should be also applicable to code editors that support LSP.

Configure clangd

clangd provides a rich set of features out of the box. However, unlike modern languages, say Golang or Rust, C/C++ projects have no standard structure. This flexible structure can make it difficult for the language server to understand the project without proper configuration.

In particular, clangd uses compilation database to understand the source code. It’s a JSON file providing compile commands for every source file in a project, and is usually generated by tools.

clangd manual describes how to generate this file for Cmake and Bazel projects. For example, the following command employs cmake to generate this file:

cmake -DCMAKE_EXPORT_COMPILE_COMMANDS=1

Generate configuration using Bear

But, not all projects (like Postgres) use these build systems. In this case, Bear can generate it by recording a complete build. To generate the compile_commands.json file, install Bear and run bear -- make. Then clangd can understand the project and provide features like code completion and refactoring.

Conclusion

So, ready to dive into C/C++ development? Here’s what you need to do:

  1. Use a code editor that supports LSP (e.g. Zed, VSCode, or Vim).
  2. Choose clangd as the language server and provide it with a compile_commands.json file.
  3. For Cmake/Bazel projects, use their built-in tools to generate that file. For other projects, use Bear.

Updated 2024-07-31

How to Develop C/C++ with VSCode and Clangd

  1. Install VSCode plugin clangd
  2. Install clangd in source code environment
    • (Local) install clangd locally
    • (Docker) install clangd inside the Docker container
    • (Remote) install clangd on the remote server
  3. Adding flag -DCMAKE_EXPORT_COMPILE_COMMANDS=1 to CMake command and rerun cmake
  4. (Optional) Run VSCode command clangd: Restart language server

Explained

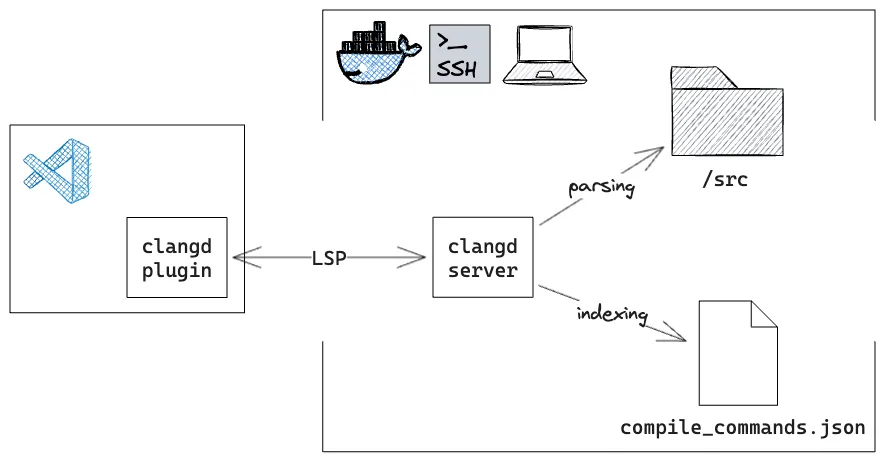

Modern code editors uses LSP (Language Server Protocol) to provide consistent features (e.g. code completion, go-to-definition, and refactoring). LSP architecture is shown below, using clangd as an example.

clangd LSP architecture

LSP client handles editor commands and queries the server. The LSP server parses the source code and provides the results back to the client. Then the LSP client displays the results to the user.

clangd is a language server for C/C++, based on the Clang compiler. Since source files are not self-contained in C++, clangd requires compile_commands.json containing compile commands for every source file in a project. This file can be generated by CMake with -DCMAKE_EXPORT_COMPILE_COMMANDS=1 flag.

Defaultly clangd uses build/compile_commands.json, but you can specify the path in .clangd configuration file. The following example of .clangd indicates clangd to use build/clangd/complie_commands.json:

CompileFlags:
  CompilationDatabase: build/clangd

Updated 2024-07-31

How to Debug C/C++ with VSCode and Remote LLDB

  1. Install VSCode plugin Remote Development (be it container or SSH), and install LLDB DAP in the remote environment
  2. Install lldb in source code environment
  3. Build the project with debug symbols
  4. Configure .vscode/launch.json
    {
	"version": "0.2.0",
	"configurations": [
		{
			"type": "lldb-dap",
			"request": "launch",
			"name": "Launch",
			"program": "${workspaceRoot}/<your program>",
			"args": [],
			"env": [],
			"cwd": "${workspaceRoot}"
		}
	]
}

Explained

Modern debuggers employ client/server architecture to provide debugging features. The architecture is shown below, using lldb as an example.

lldb debugger architecture

The debugger client (e.g. VSCode) sends commands to the debugger server (e.g. lldb) and receives the results. The debugger server interacts with the target program and provides the results back to the client. Then the debugger client displays the results to the user.

lldb is a debugger for C/C++, based on the LLVM project. To debug a program with lldb, you need to build the program with debug symbols.
